Hard Seal Gate Control Valve, Stainless Steel, 1-1/2-24 Inch

Home Products Other Control Valves Hard Seal Gate Control Valve, Stainless Steel, 1-1/2-24 Inch
Hard Seal Gate Control Valve, Stainless Steel, 1-1/2-24 Inch

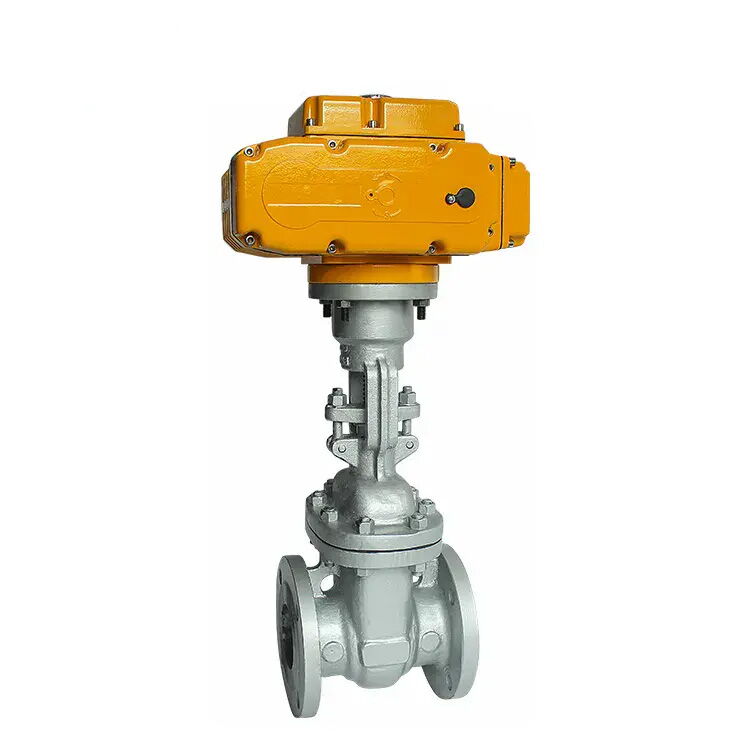

As a prominent maker in China, we craft hard sealing gate control valves with electric actuators, meticulously engineered in stainless steel. Available in sizes from 1-1/2 to 24 inches (DN40 to DN600), these valves are rated for Class 150 to 300 LB, ensuring robust performance across various industrial applications. Equipped with EPDM/PTFE seats for reliable sealing, they feature flanged ends for secure and easy installation.
Request a quote

Detail Information

Valve Body
Size Range 1-1/2-24 Inch, DN40-DN600
Body Material Stainless Steel
Seat Material EPDM/PTFE
Connection Type Flanged (GB/ANSI/JIS/DIN)
Working pressure Class 150-300 LB
Temperature Of Medium EPDM: -45℃ - 80℃ / PTFE: -30℃ - 180℃
Applications Water, solvent, acid, natural gas, oxygen, hydrogen peroxide, methane, ethylene, etc.

Product Advantages

• Construction: Features a simpler, lighter, and more compact design.
• Medium Handling: Efficiently conveys muck while minimizing liquid accumulation at the pipeline's mouth.
• Maintenance: The pinless, 2-section valve stem allows for easy maintenance and disassembly.
• Sealing: Equipped with PTFE sealing material, which is resistant to corrosion and aging.
• Actuator Options: Available in on-off, adjustable, and intelligent types.
• Fast and Responsive: Capable of quick opening and closing.
• Temperature Resistance: PDEM withstands temperatures from -10℃ to 120℃, and PTFE from -30℃ to 180℃.
